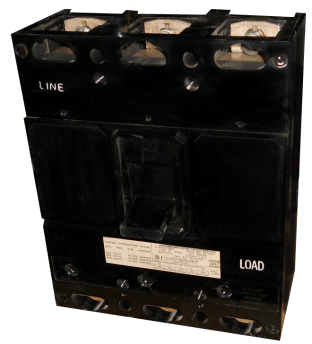

ITE LL Breakers - 480/600V
| Catalog # | Amps |
| LL3-B250 | 250 |
| LL3-B300 | 300 |
| LL3-B350 | 350 |
| LL3-B400 | 400 |
| LL3-B450 | 450 |
| LL3-B500 | 500 |
| LL3-B600 | 600 |
SIEMENS LL FRAME ONLY - 480V
| Catalog # | Max Amps |
| LL3F600 | 600 |
ITE LL TRIP UNITS - 480/600V
| Catalog # | Amps |
| LL3-T250 | 250 |
| LL3-T300 | 300 |
| LL3-T350 | 350 |
| LL3-T400 | 400 |
| LL3-T450 | 450 |
| LL3-T500 | 500 |
| LL3-T600 | 600 |
BREAKER SPECS
| Manufacturer: | ITE/GOULD |
| Frame: | LL |
| Family: | ET Heavy Duty |
| Mounting Type: | Bolt In |
| Trip Unit: | Interchangeable |
| Dimensions: | 11″ W X 9″ H X 4 1/16″ D |
| AIC Rating: | 42kA @ 240V, 30kA @ 480V, 22Ka @ 600V |
